Product and Features.
IMS Mobile Screens are ideally suited to process sand and gravel in dry screening or rinser type applications. Depending on material configuration and screen mesh requirements, it is possible to process up to 300tph with these products. The mobility of these units leaves them very easy to transport between sites.
the MS841W wheel mobile screen, the ideal screening solution for small sand and gravel pits, topsoil screening, small quantity aggregate sizing. Compost materials and wood by-products.
IMS MS841W is a competitively priced, wheeled mobile screen, specifically targeted at the developing and contractor markets, where mobility and quick set up are essential. The screen is designed specifically to suit a wide range of applications and material types. The fact that it is built as a semi-trailer to comply to road transport regulations means that it is (like the MS842W) ideally suited to travel long distances without the need for low bed trailers
IMS mobile screens have been used in a variety of applications including aggregate, sand and gravel, coal, wood chip, C+D, and topsoil
Request Callback

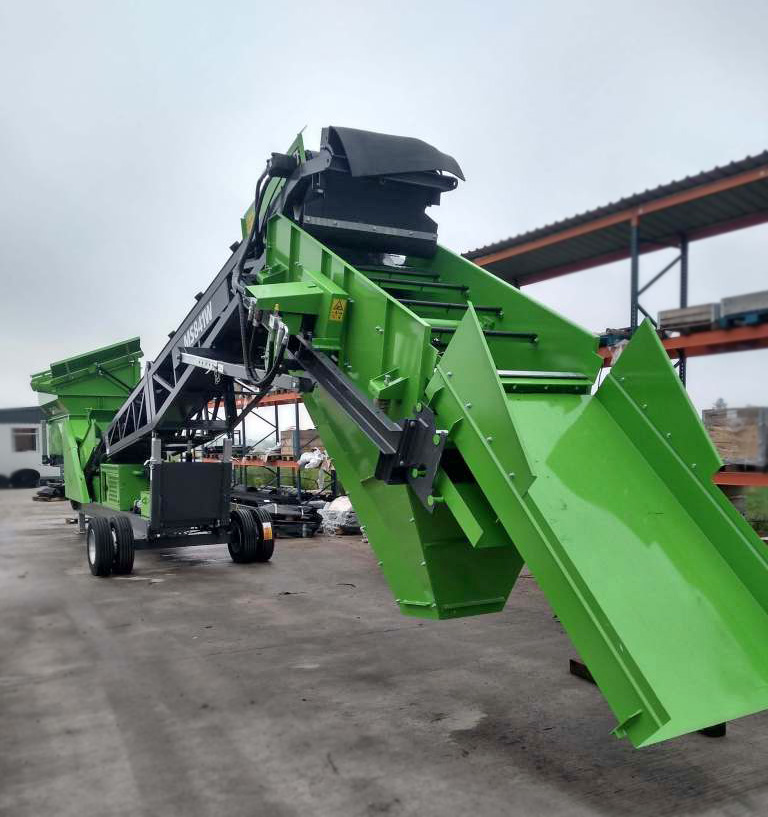

IMS MS841W Diesel powered, also available in Electic
Product Specifications
Features and Benefits
7 Yd (5.3M)Hopper with Variable Speed Belt Feeder and Remote
Tipping Grid
Maximum Feed Size 6”
8’ x 4’ Double Deck 4 Bearing screen with end tensioned meshes
Capacity up to 250 tph (depending on material type, feed size and screen media selection)
Diesel Hydraulic Drive to latest emission standards
Alternative Electric Hydraulic Drive
Fifth Wheel Towing with transport wheels and axle
Site Towbar for localized movement with site equipment
Hopper and Grid
Capacity 7 cu yd. (5.3cu M)
Remote Control Tipping Grid
Grid Spacing 4” (100mm), 5” (125mm), 6” (150mm)
Single Bar Grid for easy replacement
Feed In Height 10’6” (3.2m)
Target Area 12’3” x 6’0” ( 3.7m x 1.8m)
Belt Feeder
30” (750mm) 2 ply plain belt
Danfoss Direct Drive Hydraulic Motor
Variable Speed Control
Main Conveyor
30” (750mm) 2 ply plain belt
Danfoss Direct Drive Hydraulic Motor
Manual
Screenbox
8’ x 4’ (2500mm x 1250mm) Incline Double Deck 4 bearing screen
End Tensioned Meshes
Manual Screen Tensioning
Manual Screen Angle Adjustment
Power Unit
T50HP (37KW) Diesel Engine (Tier 4F (USA) / Tier 5 (EC)
Fuel Tank 35 gallon (160 litres)
Hydraulic Tank 50 gallon (220 litres)
Tandem 2PL 070 Hydraulic Pump
Axle and Wheels.
Axle and Wheels.
Media
Specification
Total Weight: 20000lbs (9100kgs)
Transport Length: 53’0” (16.15m)
Transport Width: 7’3” (2.2m)
Transport Height: 12’6” (3.8m)
Working Length: 57’0” (17.4m)
Working Width: 7’3” (2.2m)
Working Height 16’ 6” (5.03m)
Screen Size: 8’ x 4’ (2500mm x 1250mm)
Diesel Power: 50HP (37KW) Tier 4F (USA) /Tier 5 (Europe)
Electric Power: 50HP (37KW)
OPTIONS
Single Shaft Shredder with hammers or flails
Braked Axle
Light Board
Rinse Bars and Rubber Lined Sandbox
3 Deck Screen
