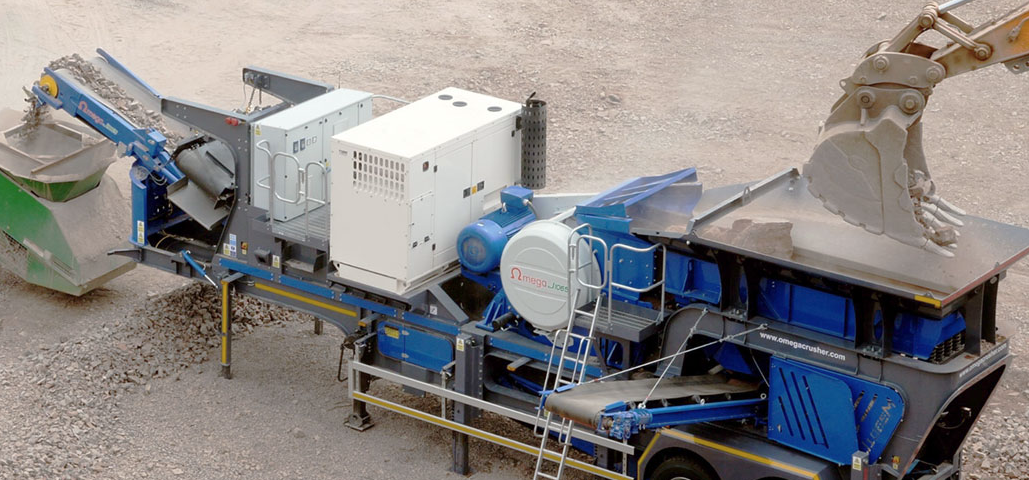

The Omega J1065M is a wheeled crusher offering from Omega.

This unit is ideal for the urban environment and primary quarry applications.

Hosting the field proven Omega 1065 Jaw crusher & easily transportable with dual power options:

  • All electric drive
  • User friendly no PLC
  • Dual power
  • Quarry or recycling applications
Request Callback
Pegasus MS842W Portable Aggregate Screener

Pegasus MS842W Portable Aggregate Screener

The latest development for Omega is the J1065M. This state of the art primary Jaw Crusher has been purposed designed for the requirements of quarries, surface mines, recycling plants and demolition companies who require a cost effective mobile aggregates solution.

Product Specifications

HOPPER

  • Hardox construction
  • 4.1 m3

JAW CRUSHER

  • 40” x 26” / 1000 mm x 650 mm opening
  • 21” / 530 mm max feed
  • 2"-5" CSS range

VIBRATING FEEDER

  • 940 mm wide vibrating feeder
  • Declined feeder to assist material flow
  • Hardox lined
  • Stepped grizzly section
  • Operator remote control on/off

POWERPACK

  • Emmision compliant engine
  • Grid plug in option

FINES CONVEYOR

  • 700 mm wide belt
  • 3042 mm discharge height
  • Self-cleaning spoke tail drum

DISCHARGE CONVEYOR

  • 900 mm wide belt
  • 3466 mm discharge height
  • Overband magnet
  • Hydraulic folding
  • Self-cleaning spoke tail drum

Media


Video of similar, not latest model. J1065M
