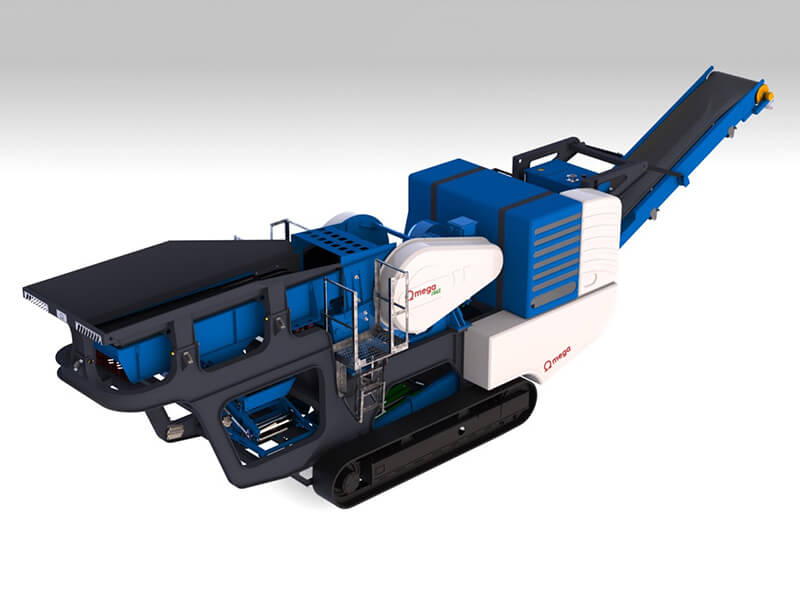

The Omega J1065T Tracked Crusher

This unit is a cost effective, high output, all electric drive tracked jaw crusher designed for quarry, mining & recycling applications.

The 1065T is a dual powered crusher with options of CAT, VOLVO or DEUTZ power pack.

  • Dual power
  • Easy to operate
  • Efficient electric drive
  • High output capacity
Request Callback
IMG-Omega-J1065T
Fitted with the high performance Irish built Omega 1065 Jaw crusher with its simple toggle tensioning system.

Product Specifications

HOPPER

  • Hardox construction
  • 3.8 m3 capacity
  • Hydraulic folding and locking for rapid set up

JAW CRUSHER

  • 40” x 26” / 1000 mm x 650 mm opening
  • 21” / 530 mm max feed
  • 2"-5" CSS range

VIBRATING FEEDER

  • Declined feeder to assist material flow
  • Hardox lined wear plates
  • Stepped grizzly section
  • Hardox lined
  • Operator remote control on/off

POWERPACK

  • Emissions compliant
  • High effecincy system
  • Grid plug in option

DISCHARGE CONVEYOR

  • Powerful motorised head drum pulley
  • 900 mm wide belt
  • Hydraulic raise and lower for rebar clearance
  • Overband magnet
  • Self-cleaning spoke tail drum

FINES CONVEYOR

  • 600 mm wide belt
  • 900 mm wide belt
  • 2440 mm discharge height
  • Self-cleaning spoke tail drum

TRACKS

  • 600 mm wide belt
  • Proportional hydraulic control
  • 400 mm wide
